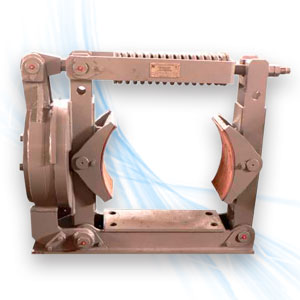

Shoe brakes with a horizontal axis of the brake pulley and DC electromagnets are designed to stop and hold the shafts of mechanisms, mainly hoisting-and-transport machines, in a braked state when the electric motor is not running.
Shoe brakes ТКГ (for pulleys from 200 to 500 mm] are equipped with an electromagnetic pusher.
The brakes are equipped with coils of parallel excitation with duty cycle of 25%, voltage of 110 V and of sequential excitation of duty cycle of 25%, current strength - at the request of the customer.
| Brake type | Brake pulley diameter, D in mm |
Coil excitation | Gap between pads and a pulley, mm, no more |
Brake weight, kg, no more |
||||||
| Parallel | Consecutive | |||||||||
| 60% nominal current | 40% nominal current | |||||||||
| Operating mode PV,% | ||||||||||
| 25 | 40 | 100 | 25 | 40 | 25 | 40 | ||||
| Maximum braking torque MTmax, Nm, no more | ||||||||||
| ГКП-400 | 400 | 1470 | 1175 | 540 | 1470 | 1175 | 882 | 540 | 1,50 | 241 |
| ТКП-500 | 500 | 2450 | 1865 | 835 | 2450 | 1865 | 1470 | 980 | 1,75 | 370 |
| ТКП-600 | 600 | 4900 | 3480 | 1520 | 4900 | 3480 | 2940 | 2010 | 2,00 | 643 |
| ТКП-700 | 700 | 7850 | 5640 | 2745 | 7850 | 5640 | 4710 | 3190 | 2,25 | 935 |
| ТКП-800 | 800 | 12260 | 8930 | 4315 | 12260 | 8930 | 7360 | 4955 | 2,50 | 1250 |
| Brake type | Brake pulley diameter, D in mm |
Transmitted torque, |
Gap between pads and a pulley, mm, no more |
Brake weight, kg, no more | |
| Welded option | Cast option | ||||
| ТКГ-200 | 200 | 300 | 1 | 24 | 23,5 |
| ТКГ-300 | 300 | 800 | 1,5 | 49,5 | 49 |
| ТКГ-400 | 400 | 1500 | 1,4 | 70 | 74 |
| ТКГ-500 | 500 | 2500 | 2 | 129 | 126 |
| ТГЕ-500 | 500 | 2500 | 2 | 113,5 | 113 |
